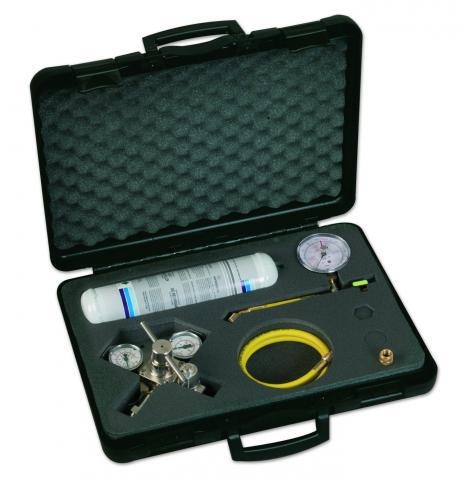

KIT NITROGEN REDUCER K-AZ200-50 / BN2
KIT NITROGEN REDUCER K-AZ200-50 / BN2
Technical Notes:
NITROGEN KIT USED FOR:
CHECK OF PRESSURE LOSSES OF HVAC & A /
C SYSTEMS - WASHING OF HVAC & A / C SYSTEMS
-FLOW DURING WELDING IN HVAC & A / C SYSTEMS
INCLUDES: - "HEAVY DUTY" NITROGEN REDUCER
- INLET PRESSURE: 20 MPA
- OUTPUT PRESSURE: 0.05 ö 4.8 MPA - 1/4 "SAE CONNECTION
- d.80 MANOMETER, CLASS 1.0 WITH DEFINED SECTORS
POSITIONING INDEX AND ADJUSTMENT SCREW-1/4 "SAE HOSE, 900MM+200MM
- 950 CC - 110 BAR - TPED NITROGEN CARTRIDGE
5/16 "SAE- F X 1/4" SAE ADAPTER- FOR CONNECTING SYSTEMS TO R410A-
M3132ROBUST AND CONVENIENT PLASTIC CASE
CHECK OF PRESSURE LOSSES OF HVAC & A /
C SYSTEMS - WASHING OF HVAC & A / C SYSTEMS
-FLOW DURING WELDING IN HVAC & A / C SYSTEMS
INCLUDES: - "HEAVY DUTY" NITROGEN REDUCER
- INLET PRESSURE: 20 MPA
- OUTPUT PRESSURE: 0.05 ö 4.8 MPA - 1/4 "SAE CONNECTION
- d.80 MANOMETER, CLASS 1.0 WITH DEFINED SECTORS
POSITIONING INDEX AND ADJUSTMENT SCREW-1/4 "SAE HOSE, 900MM+200MM
- 950 CC - 110 BAR - TPED NITROGEN CARTRIDGE
5/16 "SAE- F X 1/4" SAE ADAPTER- FOR CONNECTING SYSTEMS TO R410A-
M3132ROBUST AND CONVENIENT PLASTIC CASE
WIGAM 13005017001,WIGAM K-AZ200-50/BN2,
